Time Attendance & Visitor Management System (vms)

Biometrics System (NEW)

BIOSmart is an elegant and compact Access and Time Attendance system. It is an user friendly system. It supports latest smart card technology. It is designed to work for standalone and network applications.
Sensor Module

Specifications	Optical	Chip (Capacitive)
CPU	400 MHZ DSP
Resolution (dpi)	500+
Image Size (pixels)	280 X 320	256 X 360
Sensing Area (mm)	16.0 X 19.0	12.8 X 18.9
Authentication / Identification	1:1& 1:N (User Groups facility for faster verification)
Template Size	384 bytes (reducible to 256 bytes)
Template Upload/Download from PC	YES
Enrollment Time	2 sec
Verification Time	1 sec
Identification Time	< 2 sec
FAR	0.001%
FRR	0.1%

SALIENT FEATURES

User-friendly operating modes
Supports smart card and conventional proximity reader
Stores maximum 65000 transactions
Highest Security Level
Industry leading fingerprint identification speed.

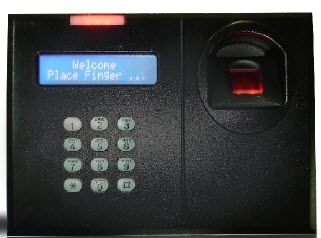

Biometrics System

SmartSINGLE is single door 'Access and Time Attendance' system. Supports latest smart card technology. It is designed to work for standalone and network applications. The systems is reliable, robust, easy to install with minimum support.
Sensor Module

Specifications	ST2 Series	ST9 Series
Read Range	Upto 5 cms
Reader	Pin /Proximity Reader / Smart Card Reader
No. of Users	1000	25,000
Transaction Storage	4000	65,000
Inputs/Output	2 i/p (Door Status, Egress), 2 o/p (DOTL, Lock Open)
LCD	16 X 2, Blue Color LCD
Keypad	12 Key Numeric
Communication Port	RS232 / RS485 / TCP/IP
Baud Rate	9600bps (Default), Software Programmable
Time Zone / Access Levels	7 / Unlimited	31 / Unlimited
Software	Attendance / Access (Standard & Web-based version)
Remote Management System	YES
Power Supply Regular	YES
Facility Code	YES
Value Addition	Birthday Message, Anniversary, Guest Welcome Message
LED / Beeper	2 LED indicator (Red / Green), Piezo Buzzer
Power	DC12V, Max. 350mA
Battery Backup Power Supply	Optional
Color	Jet Black
Interface with Fire Panel	YES

SALIENT FEATURES

Easy to configure and install
Supports biometrics / proximity / smart card wiegand readers.
Products to support range of requirements for Small and Medium Scale Enterprises.
Minimum support required

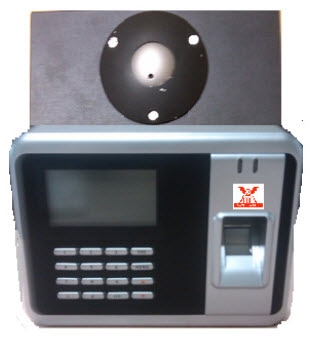

CAMERA BASED BIOMETRICS

Technical Specification

• Suitable for Office/ Building / Factory / Hotels / Hospitals/ Bank / Defense
• High speed and reliable fingerprint matching, it can match templates very fast
• 1: N identification
• Standalone embedded fingerprint reader, no dedicated PC connectivity required
• Optical fingerprint sensor
• Simple, easy to use and reliable system at reasonable prices
• Data can be downloaded on pen drive
• User capacity 2000 Fingerprints
• Transaction Storage 50000 Logs
• Communications TCP/IP network compliant.
• Relay output 2A /12VDC
• LCD Screen 128 x 64Graphical Blue with 2 line display and key pad
• Language – English
• Identification speed < 1 Sec
• FAR <=0.0001%
• FRR <=1%
• LED Red and Green
• Power 12 V DC
• Inbuilt Card Reader
SPECIAL FEATURES: • Fastest Fingerprint Scanning – 35% increased Speed because of Dual Core System.
•Automatic Fingerprint Update – Updates fingerprint automatically incase of change in skin due to age,
season, skin peeling and others.
• Inbuilt Battery Backup
•Time Attendance Software – Timetrack Standard
Daily, Monthly reports with leave management.
•Inbuilt Pinhole Camera.

Download Catalogue

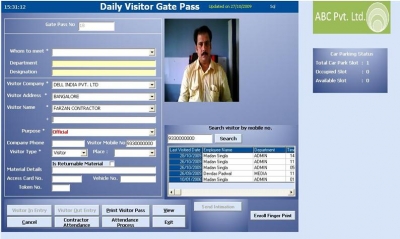

Visitor Management System

Efficiency of any organization mainly depends upon the optimum use of the available resources. The Visi-Track software deals with effective control, record maintenance and printing of gate passes for visitors to prevent the entry of any unauthiorised or unwanted person entering the premises and keeping the tab on the authorized visitor visiting the area he/she is permitted to move in, meeting the person he/she is allowed to meet and avoid unwanted movement in the premises.

SALIENT FEATURES

Biometric integration
Contract visitor gate pass
Daily visitor gate pass
Contract employee’s attendance
Search visitor details by mobile number
Sending POP ups, SMS to host employee
On line visitor requisition
