The smallest FM we've ever made

Small size Car tracking Parametrized operation (acquire & send) Integrated scenarios
Overspeeding Authorized driving (50 iButton keys) Immobilizer
Online tracking Low energy consumption in deep sleep mode

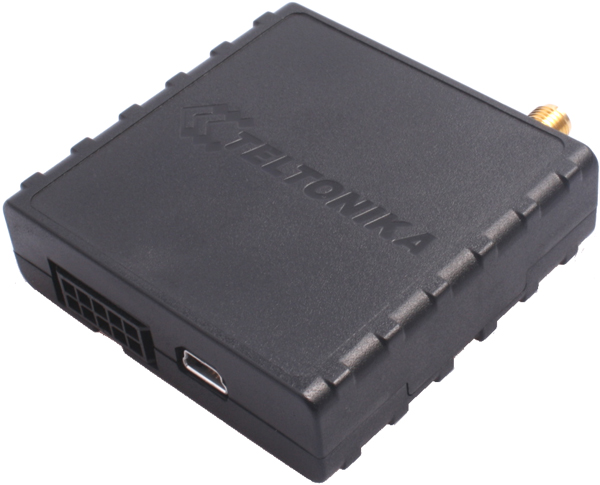

FM1100 is light terminal with GPS/GLONASS and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.
In case of losing connection FM1100 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.).
FM1100 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.
Application:

• Track and trace
• Road assistance
• International logistics
• Personal car's and van tracking
• Fleet management

Technical details:

GSM

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS class 10 (up to 85,6 kbps)
;
• SMS (text/data)

GPS/GLONASS

• NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
• 32 channel GPS/GLONASS receiver
• -161 dBm sensitivity

Interface

• 1 Digital Input Reserved for Ignition Status Monitoring
• 2 Digital Inputs
• 1 Analog Input (10V or 30V range)
• 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
• 1-Wire® protocol
• Power supply (+10...+30) V DC
• 2 Status LEDs
• USB Port
• Configuration and firmware upload (FOTA and via USB cable)
• External GSM antenna (SMA connector)
• External GPS/GLONASS antenna (MCX connector)

Features

• GPS/GLONASS and I/O data acquisition
• Real Time tracking
• Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Operating in roaming networks (preferred GSM providers list)
• Events on I/O detection and sending via GPRS or SMS.
• Scheduled 24 coordinates SMS sending
• 5 geofence zones (rectangular or circle)
• Deep Sleep mode (saving vehicle's accumulator)
• FOTA (firmware updating via GPRS)
• Motion sensor
• Small and easy to mount case
• Roaming dependant operation (GPRS traffic saving in roaming zones)
• Operation mode presets:
  • Advanced overspeeding detection
  • Driver identification (1-Wire® iButton ID key)

Flyer                   Download Catalogue


E26 certificate   Download Catalogue


CE Declaration   Download Catalogue


CE certificate     Download Catalogue

Waterproof GPS/GSM vehicle tracker

Main Features

• Waterproof housing (IP67)
• Large Flash memory (16MB!)
• To store records up to 120 days in case of lost connection or in roaming
• Remote logs reading
• For remote issue solving with manufacturer
• Configurable device behavior
• To customize the data aquire&sending for different application and GSM costs saving
• Precise online tracking
• Under time, distance and corner alteration
Integrated scenarios:
• Overspeeding to secure driver and prevent penalties
• Authorized driving (50 iButton keys) to prevent stealing
• Immobilizer
• Integrated back-up battery

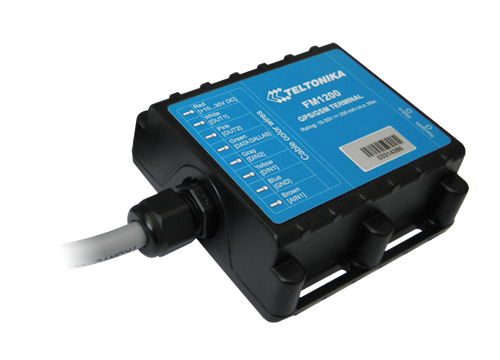

FM1200 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications, which need location acquirement of remote objects. It is important to mention that FM1200 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM1200 also has a USB port for device status log output and entering configuration.

Technical Details:

GSM:

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS class 10 (up to 85,6 kbps);
• SMS (text/data)

GPS:

• NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible
• 50 channel GPS receiver
• -161 dBm sensitivity

Interface:

• 1 Digital Input Reserved for Ignition Status Monitoring
• 2 Digital Inputs
• 1 Analog Input (10V or 30V range)
• 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
• 1-Wire® protocol
• Power supply (+10...+30)VDC
• 2 Status LEDs
• Configuration and firmware upload (FOTA and via cable)

Features:

• Hermetic enclose IP67
• Internal GSM antenna
• Internal GPS antenna
• GPS and I/O data acquisition
• Real Time tracking
• Smart data acquisition (based on time, distance, angle, ignition and events
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Operating in roaming networks (preferred GSM providers list)
• Events on I/O detection and sending via GPRS or SMS
• Scheduled 24 coordinates SMS sending
• 5 geofence zones (rectangular or circle)
• Deep Sleep mode (less power consumption)
• FOTA (firmware updating via GPRS)
• Motion sensor
• Small and easy to mount case
• 3 operational modes (Home, Roaming, Unknow) based on operator
Operation mode presets:
• Advanced overspeeding detection
• Driver identification (1-Wire® iButton ID key)

Flyer (with Internal GPS antenna) Download Catalogue


Flyer (with External GPS antenna) Download Catalogue

New generation advanced automotive tracker

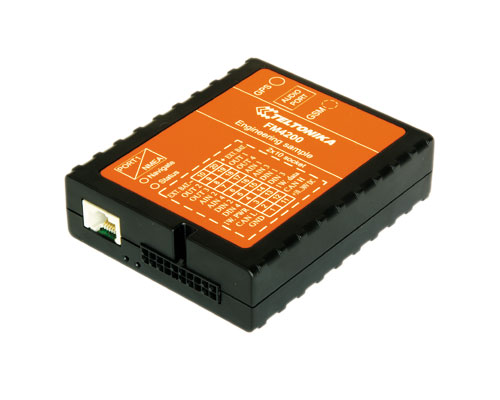

FM4200 is a terminal with GPS and GSM connectivity, which is able to get device coordinates and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars, ships, etc.) quickly and easily.
It has option of rechargeable battery inside and special controller for power management. Also there is an option of using external backup battery. Thus it can operate for up to 48 hours in Normal (Sending via GPRS) mode with external backup battery. FM4200 can perform tasks on remote objects, such as monitoring temperature, engine status, fuel consumption, controlling truck’s door, etc.
In case of losing connection FM4200 can store up to 7500 records, and once the connection is established the device will send stored data via GPRS. So you won’t lose your data (coordinates, sensors data, etc.).
The case of the device is robust and easy mountable for installation into harsh environment.
Monitor:

• See when ignition is ON or OFF
• Identify drivers with I-Button
• Monitor fuel consumption
• See when battery voltage is falling
• Monitor temperature level in refrigerator
• See when doors are open or closed
• Acquire vehicle's CAN data

Main Features

Track your remote objects (trucks, cars, ships etc) quickly and easily

The device supports the following GSM bearers:
• GPRS class 10 (up to 85,6 kbps)
• SMS (text/data)
• Dual-band GSM - 900 MHz / 1800 MHz
• LOW energy consumption in deep sleep mode (less then 6 mA@12V)
• Option of internal (or external) rechargeable battery with charge controller
FM4200 has:
• 4 digital inputs
• 4 digital outputs
• 4 analogue inputs (2 ranges 10V and 30 V, 10 bit resolution)

This could be used for performing tasks on remote objects, such as monitoring fuel tank level, engine status, or controlling truck door etc.

• FM4200 has 1-Wire® I/O protocol integrated for temperature measuring or key ID identification.
• FM4200 has CAN interface for FMS interface of trucks, which enables data acquisition from trucks on-board computer.
• FM4200 has RS232 port which could be used for external peripheral data acquire
• Voice function
• 2 LED indicators: “Status” and “Navigate”
• The package includes antenna, Coloured I/O cables and data cables

Teltonika’s firmware for the device enables such functions as:

• GPS and I/O, 1-Wire, CAN data acquisition
• External sensors connection capability
• Real Time tracking
• Smart algorithm of data acquisition (time and distance based
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Flexible configuration of data sending in roaming networks (depending on GSM providers list)
• Events on I/O detection and sending via GPRS or SMS
• Scheduled 24 coordinates SMS sending
• Multi geofence zones (rectangular or circle)
• Sleep mode and deep sleep mode (saving vehicle’s accumulators)
• Acceleration detection (harsh breaking and accelerate measuring)
• OTA (firmware updating via GPRS)
• Real time internal processes monitoring
• Authorized numbers list for commanding

*Service availability and maximum speed depends on your GSM operator. The specifications are subject to change without prior notice

Flyer                   Download Catalogue


E26 certificate   Download Catalogue


CE Declaration   Download Catalogue


CE certificate     Download Catalogue

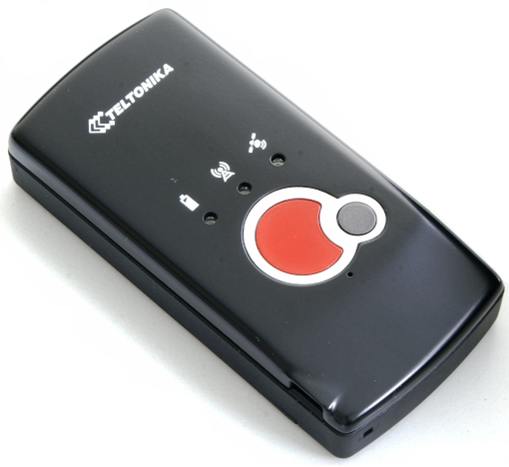

MH2000

MH2000 is an easily configurable smart tracking device combining GPS and GSM technologies. The device can be fully adapted to user requirements. Its main purpose is to act as a mobile tracking client for various security system solutions and applications:

• Child tracking and security
• Emergency companies
• Service companies (personnel tracking)
• Hospitals and other health-care institutions

The device works autonomously using internal rechargeable battery.
Key Features
Easy to use and configure
Easy accessible Alarm button
Long battery life
65 channel GPS receiver
Dual band GSM module
SMS requests, responses and configuration
Remote configuration
Online tracking / 24 coordinates history
Personal security and recovery
Notification about discharged battery
MH2000 General specification
GPS receiver - YES (-161dBm / 65 channels)
Internal GPS antenna – Patch (Dimensions: 25 x 25x 4)
GSM module – YES
Frequencies (MHz) – 900/1800 or 850/1900
Keyboard – 2 (Alarm and turn on/off buttons)
Battery – 1050 mAh (Li-ion)
LED indicators – Battery / GSM / GPS-Alarm
Weight – 80g (with battery)
Dimensions (mm) – 92 x 44 x 18
Data transfer
SMS – Requests / Alarm
Connection to a PC
Connector – YES (Firmware update and debug)
Configuration
Configuration via SMS – YES
Memory
Internal memory – 24 coordinates
Other
Recommended operating temperature 0 up to 50?C
Storage temperature - -20 up to 60?C
Battery life 24 coord./day - 150 hour
Battery life 24 1 coord./day - 350 hour
Battery life sleep - 420 hour

Flyer                              Download Catalogue


Quick-Start Manual      Download Catalogue
