Hand Held Devices Products

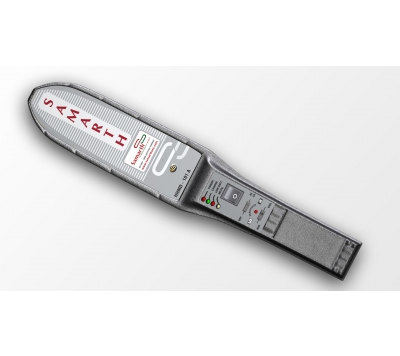

MODEL-101A
- Detects Ferrous and non Ferrous material .
- Built-in charger.
- High sensitivity.
- Light Weight but strong ABS body.
- Change over between Rechargeable and Dry battery pack gives uninterrupted operating.
- Low battery indication.
- Audio and/ or visual alarm to draw attention of the operator.
- Gold,Silver,Platinum,Brass, Copper,Mild and stainless steel are detected effectively.
- Easy facility for sensitivity adjustment.
- Convenient indication panel.
- Indicator for detection, charging, Power, Low battery etc.
- Audio socket for external ear-piece.(optional)
TECHNICAL SPECIFICATION
| Sensitivity : | Can detect 0.1 gm metal of 6mm |
| Search coil area : | 80 cm |
| Supply (dual) : | 9 VCD(rechargeable/dry cell) |
| Rated Current : | 12.5 mAmp.(Max..) |
| Power Consumption : | 110 mW. |
| Weight : | 00 gms.(Aprox.) |
| Dimentions : | 39 X 7 X 3 cm.(LXWXH) |
| Operating Temp. Range : | -5oc to +50oc |

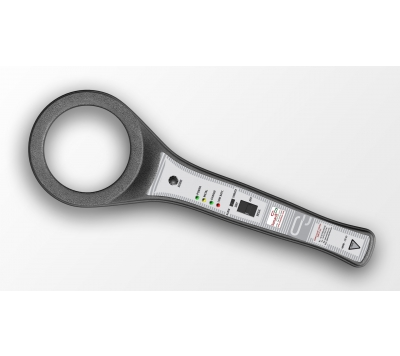

MODEL-103 C(vibration)
A Hand Held metal detector 103 C is a carefully designed device ideal for detecting metal on frisking object. Its compactness allows user to show it in the pocket of the uniform. It is designed and manufactured as per related I.S. (Indian standard). Its design is such that it dose not affect an in-planted pacemaker. It is designed with special attention. So it frisking over object will be easy and fast. Due to its ultra high sensitivity it is an ideal detector for jeweler and precious metal industries and VIP security Battery charger is a standard along with every detector.
SALIENT FEATURES
- Detects Ferrous and non-Ferrous material.
- High sensitivity.
- Light Weight but strong ABS or FRG body.
- Compatible to rechargeable and dry battery pack as per requirement.
- Audio, Visual & Vibration alarm facility to draw attention of the operator.
- Compact size for easy operation.
- Gold, Silver, Platinum, Brass, Copper, Mild and stainless steel are detected effectively.
- Easy facility for sensitivity adjustment
- Harmless for heart patient with pace maker and pregnant women
- Optional Vibration Mode
TECHNICAL SPECIFICATION
| Sensitivity : | Detect 0.1 gm metal |
| Search coil area : | 120 sqmm |
| Supply (dual) : | 9VDC (Rechargeable/Dry) |
| Dimension: | 390x57x37 (WxDxH)mm |
| Weight : | 340 gms incl battery(Aprox) |
MODEL 103C
A Hand Held metal detector 103 C is a carefully designed device ideal for detecting metal on frisking object. it''s compactness allows user to show it in the pocket of the uniform. it is designed and manufactured as per related I.S. (Indian standard). It''s design is such that it dose not affect an in-planted pacemaker. it is designed with special attention. so it frisking over object will be easy and fast. Due to its ultra high sensitivity it is an ideal detector for jewellery and precious metal industries and VIP security Battery charger is a standard along with every detector
SALIENT FEATURES
Features
- Detects Ferrous and non Ferrous material .
- High sensitivity.
- Light Weight but strong ABS or FRG body.
- Compatible to rechargeable and dry battery pack as per requirement.
- Audio alarm with ear phone facility to draw attention of the operator.
- Compact size for easy operation.
- Gold, Silver, Platinum, Brass, Copper, Mild and stainless steel are detected effectively.
- Easy facility for sensitivity adjustment
| Sensitivity : | Detect 0.1 gm metal of 6mm |
| Search coil area : | 45 cm2 |
| Supply (dual) : | 9 VCD (rechar or dry cell |
| Rated Current: | 12.5 mAmp.(Max..) |
| Power Consumption: | 110 mW. |
| Weight : | 220 gms.(Aprox.) |
| Dimentions : | 39 X 7 X 3 cm.(LXWXH) |
| Operating Temp. Range: | -5oc to +5oc |

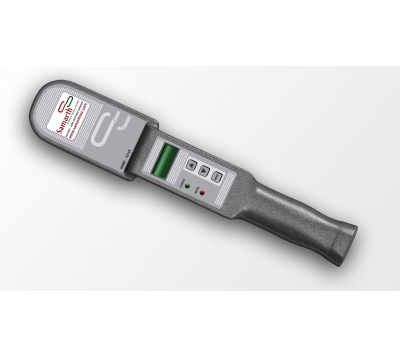

MODEL 101 AY
A Microcontroller Based Hand Held metal detector -Model 101 AY is a carefully designed device ideal for detecting metal on HUMAN BODY and an OBJECT for security purpose. it is designed and manufactured as per related I.S.(Indian standard) its design is such that it dose not affect an implanted PACEMAKER Due to its ultra high sensitivity it is an ideal detector for jewelry and precious metal industries. Battery charger is built-in so its handling becomes very easy.
SALIENT FEATURES
- High resolution LCD Display panel
- Programmable sensitivity 0-13 level
- External charger. (AC/DC Chargeable option)
- Battery status indication on LCD panel
- Buzzer sound while detection as per volume of metal.
- Programmable Buzzer volume 1. Low 2. Medium 3. High
- Easy KEY PAD options (4 key)
- RTC (Real Time Clock)
- Charge on indication
- SMT Technology
- High Reliable(High MTBF)
- Separate indication for Metal Detection
TECHNICAL SPECIFICATION
| Sensitivity : | Can detect 0.1 gm metal of 6mm |
| Search coil area : | 80 cm2 |
| Supply (dual) : | 9 V (rechargeable / dry cell) |
| Rated Current: | 12.5 mAmp.(Max..) |
| Power Consumption: | 110 mW. |
| Weight : | 300 gms.(Aprox.) |
| Dimentions : | 39 X 7 X 3 cm. (LXWXH) |
| Operating Temp. Range: | -5oc to +5oc |
