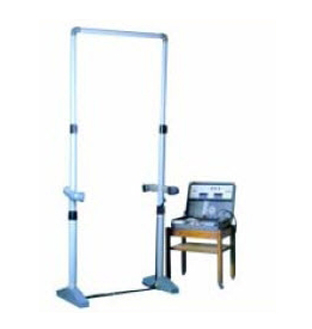

MODEL-105E (PORTABLE)

Manufactured as per customer requirement.

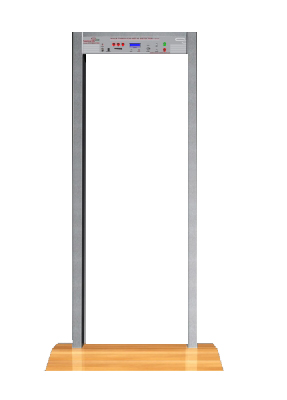

MODEL-105EA (SLEEK)

Walk Through sleek metal detector,105 EA is a prestigious product of Samarth security Systems, Mumbai, backed with technological superiority and quality. it is value to the money and yet highly dependable. Users friendly operations and setting procedure establish good relations with the actual user on site. Audio and visual alarm is provided to draw an attention of the user. The convenient slabs of Sensitivity levels offer freedom for user to assign Severity of security level.

Download Catalogue

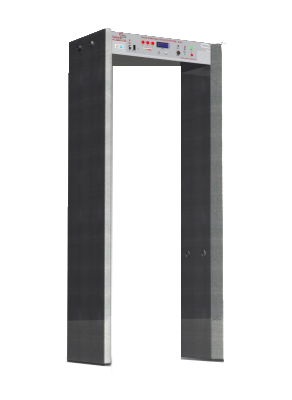

MODEL-104 DA

SALIENT FEATURES

  • Continues wave Technology
  • Detect Ferrous and non Ferrous Metal Alloys
  • Multiple Audio Signals (Min. Three Sound)
  • Self Calibration auto setting systems
  • Three level visual signal (LOW,MEDIUM & HIGH)
  • 2x16 blue Backlight LCD for in/out 6 Digit Counting
  • Fully Protected operating Control and Visual indication case of any accident
  • Operating frequency 15 to 20 KNg, No Effect on Pacemaker and Pregnant women and Magnetic
  • 10 digit LED Bar Graph
  • Walk/ Stop Indicator on both side
  • 9 Level Adjustable sensitivity
  • Fully ABS Laminated Control Panel and Search Head
  • in-Built IR Sensors(Infrared Sensors )to avoid false metal Detection
  • Transmitter, Receiver Coil Technology Systems
  • Complete Detachable systems
  • Complete Protection form Out Side Moving Metal
  • Optional Battery Back up Systems

Arch Assembly (HxDxW) in mm: 2110x510x810
Passage Clearance(HxDxW)in mm: 1930x510x710
Weight : 50Kg.(Approx)
Operating Temp.: -5 °C + 50 °C

MODEL-104 DY

FEATURES:

  • Detects ferrous and non ferrous Metals.
  • Detects ferrous and non-ferrous metal concealed in carbon.
  • Continuous Measurement.
  • LCD Bar graph Facility to display the volume of the metal carried through the detector.
  • Metal Volume displayed on the Bar-graph (16 levels)
  • User programmable sensitivity levels up to 8 levels.
  • Self balancing against any change in ambient temperature, humidity, proximity of metal around.
  • Highly reliable.(Very Low MTBF)
  • WALK and STOP display to regulate the traffic flow.
  • Instant recovery on detection.
  • In-built IR sensors (Infrared sensors) to avoid false metal detection.
  • 6 Digit IN/OUT and NET Count Display on LCD.
  • Metal Detection Threshold Setting through Key Pad.
  • Programmable Audio tones as per Metal level.
  • Password protected KEY-PAD.
  • PC connectivity through RS-232 Serial port(OPTIONAL)

Passage clearance in mm: 1940x560x690 (HxDxW)
Arch Assembly in mm : 2115x560x810 (HxDxW)
Weight: 45 Kg approx
