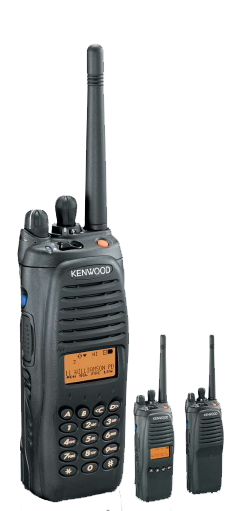

Digital HH TK-5210

GENERAL FEATURES GENERAL FEATURES

  • 5 Watt (136-174 MHz)
  • 4 Watt (450-520, 380-470 MHz)
  • 50 Zones / 512 Channels
  • Personality Lists
  • Backlit Dot Matrix LCD1
  • 16 Character Alphanumeric Aliases1
  • 3-Digit Sub-Display1
  • Function / Status LCD Icons1
  • RSSI Indicator
  • Transmit / Busy / Call Alert / Warn LED
  • On/Off Volume Knob
  • 16-Position Selector Knob
  • 2-Position PF Lever Switch
  • 3-Position PF Concentric Switch
  • 4 Front Menu-Driven PF Keys1
  • 3 Side PF Keys
  • Orange Emergency / AUX Key
  • 12-Key DTMF / PF Keypad2
  • Enhanced Kenwood Audio
  • Voice Annunciation
  • VOX Ready
  • Emergency Features
  • Tactical Group1
  • Battery Level Indicator1

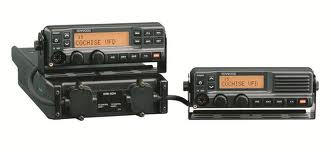

TK-5710(H)/5810

GENERAL FEATURES

  • 50W & 110W (136-174 MHz)
  • 45W (450-520, 400-470 MHz)
  • 50 Zones / 512 Channels
  • Personality Lists
  • Enhanced Kenwood Audio
  • Zone/CH Voice Announce
  • Emergency Features
  • Tactical Group
  • Intercom1
  • Public Address
  • Time Out Timer
  • Busy Channel Lockout
  • Ignition Sense2
  • Timed Power Off
  • DB-25 & 9-Pin Accessory Connectors3
  • Transceiver Password
  • Date & 12/24 Hour Time Clock
  • Windows® Programming & Tuning4
  • Windows® Firmware Uploading4
  • Field-Programming & Tuning
  • Cloning
  • Easy Option Ports (26-pin)5
  • DB-25 & 9-Pin Accessory Connectors
  • MIL-STD 810 C/D/E/F, IP-54
  • MIL-STD Noise-Cancel Mic (included)
  • MIL-STD 12-Key DTMF Mic Option

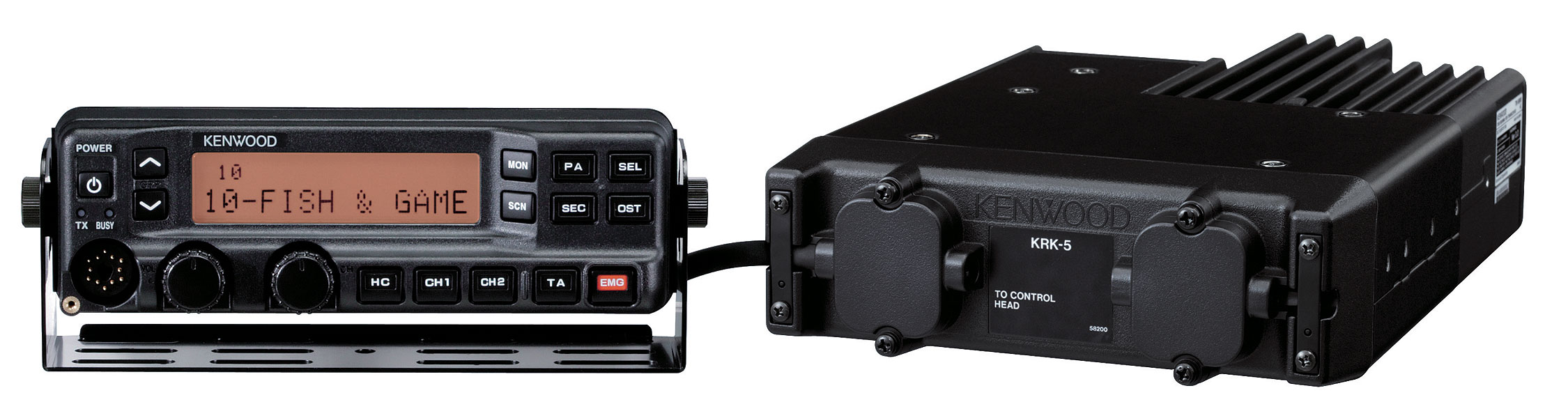

TK-5910

GENERAL FEATURES

  • 30W (763-806 MHz)
  • 35W (806-870 MHz)
  • 100 Zones / 1024 Channels
  • Personality Lists
  • Zone/CH Voice Announce
  • Emergency Features
  • Tactical Group
  • Intercom1
  • Public Address
  • Time Out Timer
  • Busy Channel Lockout
  • Ignition Sense2
  • Timed Power Off
  • DB-25 & 9-Pin Accessory Connectors3
  • Transceiver Password
  • Date & 12/24 Hour Time Clock
  • Windows® Programming & Tuning4
  • Windows® Firmware Uploading4
  • Field-Programming & Tuning
  • Voice Guide & Storage (option)*
  • MIL-STD 810 C/D/E/F, IP-54
  • MIL-STD Noise-Cancel Mic (included)
  • MIL-STD 12-Key DTMF Mic Option

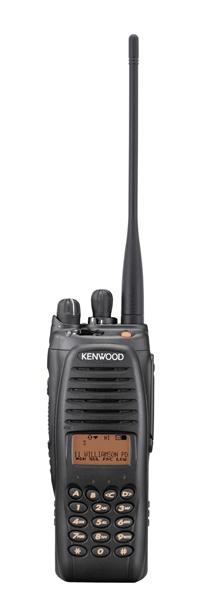

TK-5410

GENERAL FEATURES

  • 3 Watt
  • 100 Zones / 1024 Channels
  • 12-Key Keypad Model
  • Personality Lists
  • Backlit Dot Matrix LCD
  • 16 Character Alphanumeric Aliases
  • 3-Digit Sub-Display
  • Function / Status LCD Icons
  • RSSI Indicator
  • Transmit / Busy / Call Alert / Warn LED
  • On/Off Volume Knob
  • 16-Position Selector Knob
  • 2-Position PF Lever Switch
  • 3-Position PF Concentric Switch
  • 4 Front Menu-Driven PF Keys
  • 3 Side PF Keys
  • Orange Emergency / AUX Key
  • Zone / Ch Voice Announce
  • VOX Ready
  • Emergency Features
  • Tactical Group
  • Battery Level
  • Transceiver Password
  • Date & 12/24 Hour Time Clock
  • Windows® Programming & Tuning1
  • Windows® Firmware Uploading1
  • Voice Guide & Storage (option)*
  • Weather-Sealed Accessory Connector
  • MIL-STD-810 C/D/E/F
  • IP54/55 Water & Dust Protection
  • Immersion (IP66/67/68) Option
  • Intrinsically Safe Option*


TK-5720/5820

GENERAL FEATURES

  • 50W (136-174 MHz)
  • 45W (400-470, 450-520MHz)
  • 128 Zones / 512 Channels
  • Enhanced Kenwood Audio
  • Emergency Features
  • Public Address (KAP-2 Required)
  • Time Out Timer
  • Busy Channel Lockout
  • Ignition Sense
  • Timed Power Off
  • DB-25 & 9-Pin Accessory Connectors
  • 9 Programmable AUX I/Os
  • 2 Programmable AUX Outputs
  • Transceiver Password
  • Date & 12/24 Hour Time Clock
  • Windows® Programming & Tuning
  • Windows® Firmware Uploading
  • Easy Option Ports (26-pin)
  • Voice Guide & Storage (option)
  • MIL-STD 810 C/D/E/F, IP-54
  • MIL-STD Mic (included)
  • MIL-STD 12-Key DTMF Mic Option

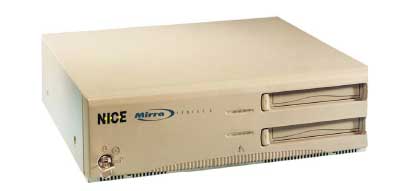

Mirra Series 2


FAST AND SECURE
Developed specifically for small-to-medium sized Public Safety Answering Points or large, distributed centers, Mirra Series 2 is the reliable, robust solution for digital voice logging. Mirra uses a real-time operating system for enhanced speed, and there is no hard disk which means no crashes or data corruption. And, at a highly-competitive price, it provides all the features and bene­fits of a sophisticated and expensive recording system.
BENEFITS
1. Simplest recorder on the market controlled through a user-friendly Windows® application. 2. Trouble-free system configuration. Just click and choose your application.

  • Easy-to-use search and replay. Search by channel, date, time, duration, CLI or dialed number — just click on the call that you want to hear!
  • Non-stop recording. Failsafe hardware and high reliability ensure continuous recording in mission-critical applications.
  • Easy system and fault monitoring. From the virtual front panel, verify performance and receive automat ic alarms in the event of problems.
  • Reliability and redundancy. Mirra's real-time operating system enhances recovery, and there are minimal moving parts.
  • Low cost of maintenance. Minimal moving parts reduces cost of repairs.
  • Secure. Robust optical media offers long-term archiving without degradation.
  • Networked. Can be shared by multiple users over the LAN.
Mirra Series 2 is controlled through an intuitive Windows application, requiring a minimum amount of user training. It uses a real-time operating system to give enhanced speed and reliability. Even if the power fails, Mirra reboots and starts recording in less than 15 seconds!
Its fast access with durable storage DVD RAM media gives instant access to any call, can store up to 1,200 channel hours per side and can be re-written up to a thousand times.The Mirra Series 2 dual disk option also provides up to 1,300 hours of continuous unat­tended recording. For redundancy, two Mirras may be connected should the master recorder fail.
In addition to analog connections, Mirra Series 2 can connect directly to proprietary digital lines from many of the most popular PBXs including: Avaya, Ericsson, Nortel, NEC, BT Alcatel, Aspect, Siemens, Bosch and Toshiba.
SPECIFICATIONS
  • From 4 to 32 inputs per recorder, in increments of 4 channels
  • Audio Inputs: Analog telephony, proprietary digital with extension taps, ISDN Basic rate, ISDN Primary rate (El)
  • Compression: 8kbit/s, 4 line outputs, IV RMS @ 800Hz, 600 impedance
  • Archive Storage: Single or dual DVD RAM optical disks with more than 1,200 channel hours per side, per disk

WORKSTATION SPECIFICATION
  • Pentium 233MHz or better
  • 2X CD-ROM or better
  • 32MB RAM or greater
  • Sound card and speakers (for LAN replay)
  • SVGA monitor
  • I OMB free hard disk space
  • Windows 95/98, NT4, 2000, XP
  • Ethernet TCP/IP lObaseT (for LAN control/replay)
  • I free RS232 por


Nice Call Focus III

NiceCall Focus lll offers public sector organizations a range of unique advantages, including a recording system that can be easily operated by non-technical users functioning in a mission-critical environment. NiceCall Focus lll enables advanced scenario reconstruction with the synchronized playback of multiple channels, providing new possibilities for fully understanding the chain of events and rapidly creating evidence recordings. And all this in an easily installed, space-saving, single box.
Low cost of ownership - complete, fully-featured, long term, one-box solution (based upon NICE’s cutting edge PCI board technology) with low maintenance requirements.
Flexible, user-friendly applications with intuitive user interface - get working faster and do more, more easily.
Improved response time due to rapid, easy evidence retrieval and scenario reconstruction.
Integration with centralized enterprise storage, using NICE Storage Center, makes NiceCall Focus lll the ideal solution for distributed sites.
Fast call retrieval by automatic extraction of caller ID.
MAJOR NEW NICECALL FOCUS III
FEATURES INCLUDE:
Up to 48 channels per unit.
Unmatched on-line capacity - up to 50,000 hours standard with default G.729A compression.
Mixed interface support - records a wide range of digital telephony interfaces, analog and radio channels in the same box.
Extended redundancy options including hot-swappable RAID1, hot-swappable redundant power supply (support for 48vDC) and dual archiving options.
Optional CDR connectivity for Avaya, Nortel and Siemens switches.
Open architecture - NiceCall Focus III runs with Windows XP Professional with SP2 and SQL 2000.
Tool-free maintenance - higher availability and lower maintenance costs with improved Mean Time To Repair (MTTR) and tool-free maintenance for inexpensive long term maintenance.
THE SINGLE-SERVER, POWERFUL NICECALL FOCUS III OFFERS A WIDE RANGE OF BENEFITS:
Long-term solution utilizing NICE’s cutting-edge PCIbased voice recording boards.
Easy integration with existing infrastructure.
Enhanced system security utilizing Microsoft Windows XP SP2, personal firewall and full integration with NICE privileges mechanism.
