Accessories Products
M285S
144 to 174MHz / Gain: 3.4dB / Max. power rating: 200W / Impedance: 50ohms / VSWR: Less than 1.5 : 1 Length: 1.33m / Weight : 180g / Connector: MP / Type: 5/8? mobile whip
MC-100
134 to 174MHz / Gain: 2.15dB / Max. power rating: 70W / Impedance: 50ohms / VSWR: Less than 1.5 : 1 Length: 0.52m / Weight : 390g / Connector: MP / Type: 1/4? mobile whip/magnet mount antenna
CP-22E
144 to 174MHz / Gain: 6.5dB / Max. power rating: 200W / Impedance: 50ohms / VSWR: Less than 1.5 : 1 Length: 2.7m / Weight : 1.1kg / Rated wind velocity: 45m/sec. / Mast diameter accepted: 30-62f Connector: MJ / Type: omnidirectional 2×5/8?
F22
144 to 174MHz / Gain: 6.7dB / Max. power rating: 200W / Impedance: 50ohms / VSWR: Less than 1.5 : 1 Length: 3.2m / Weight : 1.3kg / Rated wind velocity: 50m/sec. / Mast diameter accepted: 30-62f Connector: MJ / Type: omnidirectional 2×7/8?,FRP outershell
BC-100
134 to 174MHz / Gain: 4.5dB / Max. power rating: 200W / Impedance: 50ohms / VSWR: Less than 1.5 : 1 Length: 1.7m / Weight : 0.9kg / Rated wind velocity: 60m/sec. / Mast diameter accepted: 30-62f Connector: MJ / Type: omnidirectional 5/8?,FRP outershell

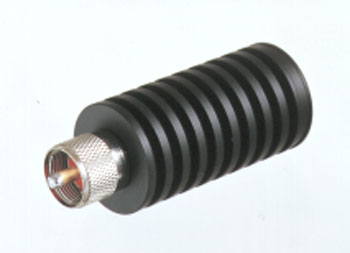

DL30A Compact Dummy Load
DL30A Compact Dummy Load |
|
Specifications: |
|
Frequency: |
DC-500 MHz |
Rated Power: |
15 watts continuous, 100 watts peak |
Connector: |
PL-259 |
Impedance: |
50ohms |
VSWR: |
1.15 |
Dimensions: |
30mm Diameter x 75mm Length |
CA35RPW Lightning Arrester
CA35RPW Lightning Arrester |
|
Specifications: |
|
Frequency: |
DC – 1000 MHz |
SWR: |
less than 1:1 |
Impedance: |
50ohm |
Insertion Loss: |
less than 0.2 dB |
Max Power Rating: |
400w PEP |
Connector: |
UHF female - UHF male |
Impulse Wave Discharge Voltage: |
1000v |
Impulse Wave Discharge Capacity: |
6000A |
Impulse Wave Retention Discharge Capacity: |
DC350v ± 20% |
Insulating Resistance DC100v: |
Over 10,000M ohms |
|
|

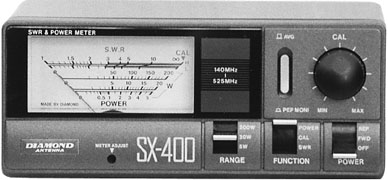

SX-400
Frequency Range: 140 - 525Mhz
Insertion Loss: Less than 0.1dB (140 - 250MHz)
Less than 0.2dB (400 - 470MHz)
Less than 0.3dB (525MHz)
Measurment Function: Forward RF Power, Reflected RF Power, SWR, PEP Monitor
SX-1000
| Frequency Range: 1.8 - 160Mhz(S1) 430 - 1300Mhz(S2) Insertion Loss: Less than 0.2dB (S1) Less than 0.15dB (S2) Measurment Function: Forward RF Power, Reflected RF Power, SWR, PEP Monitor |
|

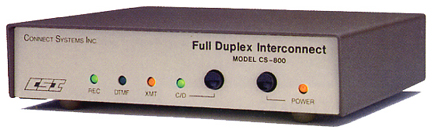

CS-800 - Duplex Phone Patch and Repeater Controller
The CS-800 contains everything necessary to convert your duplex base station, repeater, or dual band transceiver into a powerful Full Duplex (or Semi-Duplex) Mobile Radio Telephone system. A built-in repeater maker will turn your system into a repeater if desired. This will greatly extend the communications range of mobile and portable radios on the system.

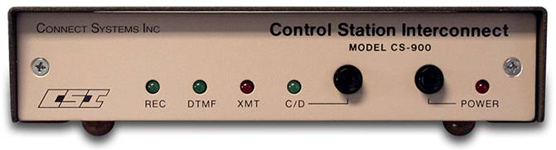

CSI MODEL CS-900 - Simplex Phone Patch
The Connect Systems Model CS-900 is a Deluxe Microprocessor based fully automatic VOX (Voice Activated) Simplex Base Station Interconnect. The CS-900 can be operated simplex or through any conventional repeater and many trunked repeaters. Words and syllables are never lost because the built in 1/2 second Electronic Voice Delay (EVD) circuit keys the transmitter 1.2 second before the telephone audio is transmitted. The delay assures that the base transmitter to mobile receiver path is ready before voice is sent. EVD is either unavailable or an expensive add on option in competing interconnects.
