Monocrystalline Solar Modules

Description

We offer a range of small, medium and large monocrystalline solar modules designed for a range of requirements.
Among the most popular monocrystalline solar modules is the D-Series PV Modules. It is an array of monocrystalline silicon solar modules made with the highest quality monocrystalline cells, from 160W to 185W. Each module is designed to perform under the harshest weather conditions and comes with a product warranty of 20 to 25 years.

Specifications

Tolerance +/- 3%
Cell Monocrystalline silicon solar cells (125 x 125mm)
N0. of Cells 72 (12 x 6)
Dimension of Modules (mm) 1581 x 809 x 40
Weight (kg) 15.5

Limits
Operating Temperature -40~+85.
Storage Temperature -40~+85.
Maximum System Voltage 1000 VDC max.
Hail Impact Diameter of 28mm with impact speed of 86km/h

Temperature and Coefficients
NOCT 48C+/-2.
Voltage temperature coefficient(%/K) -0.34.
Current temperature coefficient(%/K) 0.09
Power temperature coefficient(%/K) -0.37

Characteristics
Model SGM-160D SGM-165D SGM-170D
Max-power voltage Vmp (V) 34.5 35.4 35.8
Max-power current Imp (A) 4.64 4.66 4.75
Open-circuit voltage Voc (V) 41.75 43.6 43.32
Short-Circuit Current Isc (A) 5.32 5.08 5.38
Max-power Pm(W) 160 165 170

Model SGM-175D SGM-180D SGM-185D
Max-power voltage Vmp (V) 36.1 36.2 36.2
Max-power current Imp (A) 4.85 4.97 5.11
Open-circuit voltage Voc (V) 43.68 43.8 44.8
Short-Circuit Current Isc (A) 5.49 5.48 5.51
Max-power Pm(W) 175 180 185

STC: Irradiance 1000W/m2, Module temperature 25, AM=1.5

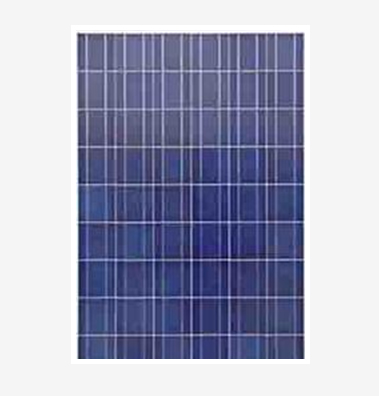

Polycrystalline Solar Modules

We offer a range of small, medium and large polycrystalline solar modules designed for a range of requirements.
Among the most popular polycrystalline solar modules is the P Series PV Modules. It is an array of polycrystalline silicon solar modules made with the highest quality polycrystalline cells, from 200W to 230W. Each module is designed to perform under the harshest weather conditions and comes with a product warranty of 20 to 25 years..

Specifications

Tolerance +/- 3%
Cell Polycrystalline silicon solar cells (156 x 156mm)
N0. of Cells 60 (10 x 6)
Dimension of Modules (mm) 1650 x 990 x 40
Weight (kg) 25.5

Limits
Operating Temperature -40~+85.
Storage Temperature -40~+85.
Maximum System Voltage 1000 VDC max.
Hail Impact Diameter of 28mm with impact speed of 86km/h

Temperature and Coefficients
NOCT 48C+/-2.
Voltage temperature coefficient(%/K) -0.35
Current temperature coefficient(%/K) 0.05
Power temperature coefficient(%/K) -0.45

Characteristics
Model SGM-200P SGM-210P SGM-220P
Max-power voltage Vmp (V) 29.2 29.4 29.41
Max-power current Imp (A) 6.85 7.14 7.48
Open-circuit voltage Voc (V) 36.5 36.69 36.9
Short-Circuit Current Isc (A) 7.28 7.6 7.93
Max-power Pm(W) 200 210 220

Model SGM-230P
Max-power voltage Vmp (V) 29.8
Max-power current Imp (A) 7.72
Open-circuit voltage Voc (V) 37.31
Short-Circuit Current Isc (A) 48.19
Max-power Pm(W) 230

STC: Irradiance 1000W/m2, Module temperature 25, AM=1.5

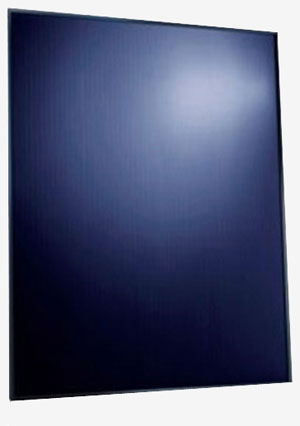

Amorphous Thin Film (A-si) Solar Modules

It is a thin film solar module with amorphous silicon (a-Si) Single Jn and Microcrystalline solar devices monolithically integrated. The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25 degree C, while Voc or Isc can be customized.



Model SG80S SG85S SG90S SG95S SG100S
Maximum Power (Pm) 80W 85W 90W 95W 100W
Operating Voltage (Vmp) 68.0V 68.9V 69.7V 70.7V 71.5V
Operating Current (Imp) 1.18A 1.24A 1.29A 1.35A 1.40A
Open Circuit Voltage (Voc) 93.5V 94.3V 95.0V 95.8V 96.5V
Short Circuit Current (Isc) 1.49A 1.57A 1.64A 1.71A 1.77A
Temperature Coefficient of Pm -0.19%/K
Temperature Coefficient of Vmp -0.31%/K
Temperature Coefficient of Isc 0.07%/K
Maximum System Voltage 1000V
Fixture None

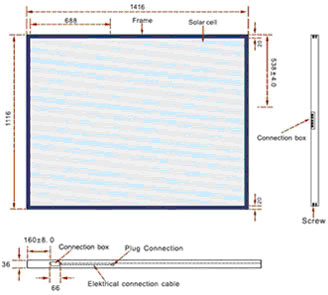

Dimensions 1100mm×1400mm×7mm
Weight 23.9kg
Temperature Range -40ºC~85ºC

Note

  • All electrical rating with a tolerance of ±10%, unless specified otherwise.
  • Product warranty: Free from defects in material and workmanship for 2 years.
  • Power warranty: maintain more than 80% of minimum rated power for 20 years and more than 90% of minimum rated power for 10 years.

Other useful information

  • Output of electricity in the first 1,000 hours of operation will exceed the specified data around 20% for Pm, 9% for Vmp, and 12% for Imp..
  • Module is glass to glass laminated.

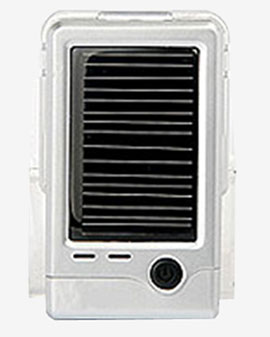

Solar Charger Kit for Mobile/PSP/Camera/IPOD/MP4/GPS

Features

  • Li-ion polymer battery, 1200 mAh capacity
  • Suitable for products: DC 5 V±0.5V
  • Provide power for: Mobile Phone, IPOD, PSP, MP3 player, MP4 player, PMP, GPS, Bluetooth, digital camera, etc.
  • Smart protection chip
  • Charged by sunlight and AC charger
  • Size : 77mm*45mm*15mm
  • Weight : 75g (Product 58 g, Belt Clip 17g)

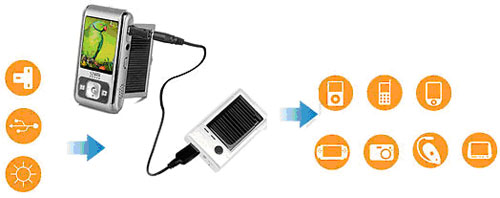

Provide Power for Digital Devices & Mobile power supply in charge

Mobile Phone, IPOD, PSP, MP3 player, MP4 player, PMP, GPS, Bluetooth, digital camera, etc. Recharged by DC Adapter?USB Port and Direct Sunglight

Applications

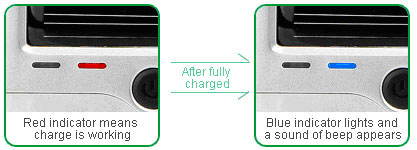

Charging indicator light

  • Charge this product by computer or supplied charger
  • Charge it under the sunglow 1 (The indicator will glow while being charged by solar engery)
  • Charge for digital device the blue indicator will glow and a sound of beep appear. After fully charged, the indicator will turn off and a sound of beep appear.

Technical Parameters

Item Specification
Battery Type Polymer Lithium-ion Battery
Dimension 77mm*45mm*15mm
Weight 75g
Working Temperature -10 to 45
Storage Temperature -10 to 55
Capacity 1200mAh
Rated Input Voltage DC 5.0 --6.0V
Rated Output Voltage DC5.4V±0.1V
Fully charged time About 3.5±0.5H
Electricity consumption at static state <=10uAC
Indication sound 71.74-73.42db
Cycle life <=500 cycles (after 500 cycles,the capacity remains more than 80%).
The current shined directly by sunglow (under the strength of 120000Lux) 28mAh± 3mAh
Fully charged time by sunglow About 60 hours (under the strength of 120000 Lux)
Accessories User’s Manual, Connection cable, connectors, charger, protection bag
